Shop drawings are the language of cabinet manufacturing. They are the single document that translates your project requirements into something a factory can build precisely — and the document you must be able to read if you want to avoid costly mistakes. Every error that survives the drawing stage is amplified through production: a wrong dimension on paper becomes a misaligned cabinet on site, a vague material note becomes a finish that does not match, a missing hardware detail becomes a drawer that does not close properly.
For developers and builders sourcing custom cabinets from China, the ability to review shop drawings and specifications confidently is one of the most valuable skills you can bring to the process. This guide explains what you will see in a typical cabinet shop drawing, what to check before approving it, and how to write specifications that leave no room for misunderstanding.
A professional cabinet drawing package for a project consists of several complementary views. Together they define the complete scope of what will be manufactured.
Elevation drawings show the front face of each run of cabinets — the layout of doors, drawers, and panels exactly as they will appear in the room. This is where you check the overall composition: whether the door and drawer pattern matches your design intent, whether tall cabinets sit in the right positions, and whether appliance openings line up correctly.
Plan drawings are top-down views showing the cabinet footprint. They are essential for verifying dimensions against the actual floor plan — total run lengths, corner details, island sizes, and clearance around appliances and walls.
Section drawings cut through a cabinet to show its internal construction: carcass thickness, shelving positions, toe-kick height, and how the cabinet connects to adjacent elements. Sections are where construction quality decisions live, and they deserve careful review.
Detail drawings zoom in on specific junctions — corners, scribes, panels, and special joinery — where standard rules do not apply and mistakes are most common.
Not all dimensions are created equal. When reviewing a drawing set, focus your attention on the dimensions that determine fit:
Overall run lengths: Does the total width of each cabinet run match the wall measurement, accounting for the correct tolerances?
Cabinet widths: Standard widths in the industry are 300mm, 400mm, 500mm, 600mm, 800mm, and 900mm — verify each unit against the plan.
Height dimensions: Base cabinet height (typically 720-900mm including countertop), upper cabinet heights, and the gap between them.
Appliance openings: Clearances for ovens, dishwashers, and refrigerators must include the required ventilation gaps, not just the appliance dimensions.
Toe-kick depth and height: A small detail with a big comfort impact — typically 100mm high and 50-60mm deep.
Cross-check every critical dimension against your floor plan and appliance specifications before approving. If a dimension looks wrong, it probably is — ask rather than assume.
The specification portion of the drawing package defines materials and finishes. This is where precision matters most. A complete material specification names the board type and grade for carcasses and doors separately — a common specification might read "18mm E1 particleboard, white melamine finish" for carcasses and "18mm MDF, matte lacquer finish" for doors.

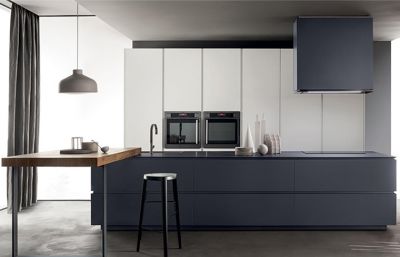

For lacquer kitchen cabinets, verify the gloss level (matte, satin, high-gloss) and the color reference. Color should be specified by a standard code such as RAL or NCS, or by reference to an approved physical sample — never by a descriptive phrase like "warm white," which means different things to different people.
For solid wood kitchen cabinets, the specification should name the wood species, the cut, the finish (lacquer, oil, stain), and the acceptable grain and color variation. Natural wood varies; the specification defines how much variation is acceptable before a panel is rejected.
If you are comparing material options, our material selection guide explains the trade-offs between solid wood, wood veneer, laminate, PVC, and lacquer in terms of cost, durability, and appearance.
Hardware appears in the specification as a line item, but it deserves the same level of detail as materials. For each hinge and slide, the specification should name the brand, model, and key features.
A professional hardware specification reads like this: "Blum CLIP-top BLUMOTION concealed hinge, 110° opening, soft-close" or "DTC under-mount drawer slide, full-extension, soft-close, 35kg load rating." This level of detail serves two purposes: it lets the factory quote accurately, and it gives your inspector a standard to verify against during final inspection.
If the specification only says "soft-close hinges," you are leaving the brand choice to the factory — which may or may not align with your quality expectations. For guidance on choosing between Chinese domestic and European hardware brands, see our cabinet hardware guide.
Even experienced manufacturers make drawing mistakes. The errors below are common enough that every reviewer should check for them deliberately:
Inconsistent door/drawer patterns between elevation and plan views
Wrong swing directions on doors — check which side the hinge is drawn on
Appliance openings that ignore ventilation clearances
Corner cabinet dimensions that do not account for the corner post
Missing scribe allowances for walls that are not perfectly plumb or square
Symbols without a legend — every drawing should have a legend explaining its symbols
Ask your manufacturer to walk you through the drawing set before you approve it. A manufacturer who can explain their drawings clearly is a manufacturer who understands their own work. If they cannot answer your questions about the drawings, that is a warning sign.
The drawing approval process is your main quality control lever, and it should follow a disciplined sequence:
Receive the preliminary shop drawings and review them against your floor plans
Return consolidated feedback in a single list — not scattered messages over several days
Receive the revised drawings and verify that every point was addressed
Sign off the final drawings in writing, with a clear statement that production may begin
Keep the signed drawing set as the reference for inspection and dispute resolution
Never verbally approve a drawing "by the way" in a call or chat message. Written, dated sign-off of the final drawing set is your contract with the factory on what will be built. It is the document both sides return to if a question arises later.
The drawing stage is also the moment to confirm that the cabinet configurations you have selected are appropriate for your spaces. Different kitchen layouts — L-shape, U-shape, galley, island, one-wall — place different demands on corner solutions, clearance planning, and cabinet sizing. The drawings should reflect the specific logic of your layout rather than a generic template.
If your project includes wardrobes, vanities, or storage beyond the kitchen, those drawings follow the same review discipline. A custom wardrobe or bathroom vanity drawing needs the same dimension checks, material definitions, and hardware specifications as the kitchen — the stakes are identical.
A shop drawing is a visual document showing dimensions, layouts, and construction details of the cabinets. A specification is the written document defining materials, finishes, hardware, and quality standards. Both are needed: the drawing shows what will be built, and the specification defines exactly how it will be made.
Prioritize overall run lengths, individual cabinet widths, height dimensions, appliance opening clearances, and toe-kick dimensions. Cross-check every critical measurement against your floor plan and appliance specifications.
Use a standard color code such as RAL or NCS, or reference an approved physical sample. Descriptive terms like "warm white" are too vague and will lead to color disputes.
Yes. Written, dated sign-off of the final drawing set is the reference document for production, inspection, and dispute resolution. Verbal approval leaves both sides without a clear record of what was agreed.
Return consolidated feedback in a single list, receive the revised drawings, and verify every point was addressed before signing off. Never approve a drawing you know contains an unresolved error, even minor ones — they tend to multiply during production.
Reading shop drawings and specifications confidently is not an advanced skill — it is a checklist discipline. Verify dimensions against the floor plan, confirm materials and finishes are precisely defined, ensure hardware is specified by brand and model, and sign off in writing only when you are satisfied. Apply this discipline consistently, and the drawing stage changes from a formality into your most powerful quality control tool.
